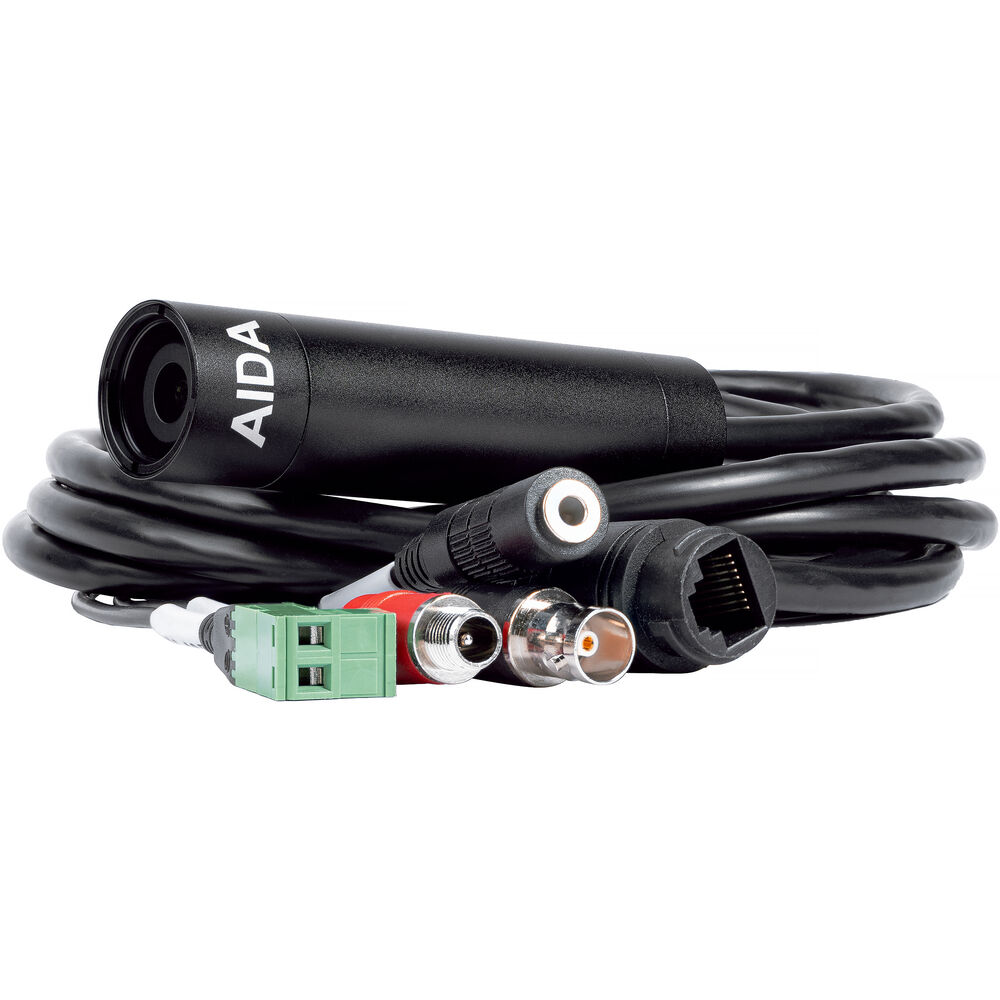

AIDA Imaging HD3G-IPC-MINI
Image Sensor
- 1/2.8" Sony Progressive CMOS Sensor (5.640 x 3.216 mm)
- Effective Pixels (H x V)
- 1920 x 1080
- Pixel Size: 2.9 (H) x 2.9 μm (V)
Resolution
- 1080p, 1080i, 720p
Frame Rate
- 1080p: 60/59.94/50/30/29.97/25/24
- 1080I: 60/59.94/50
- 720p: 60/59.94/50
Color Spaces
- 4:2:2 (YCbCr) 10-Bit
Minimum Illumination
- 0.2 Lux (Day), 0.1 Lux (Night)
- White Balance
- Auto & Manual (9000 to 11,000K)
Lens
- 3.6mm M12-Mount Lens
- Field of View
- 92° Field of View
Control Protocol
- VISCA over IP
- Weatherproofing
- IP67
Inputs/Outputs
Video I/O
- 1x BNC (3G-SDI) Output
Audio I/O
- 1x 1/8" / 3.5 mm TRS Line Input
Power
- Power Source
- AC Adapter with Power Brick (Included), PoE (Included)
- DC Input Power
- 12 VDC
- Power Consumption
- 6 W
Physical
- Mounting
- Bottom: 1x 1/4"-20
- Color
- Black
- Environmental Resistance
- Weather-Resistant (IP67)
- Operating Conditions
- 14 to 122°F / -10 to 50°C
- Cable Length
- 3' / 91.4 cm
